Trailer Modifications

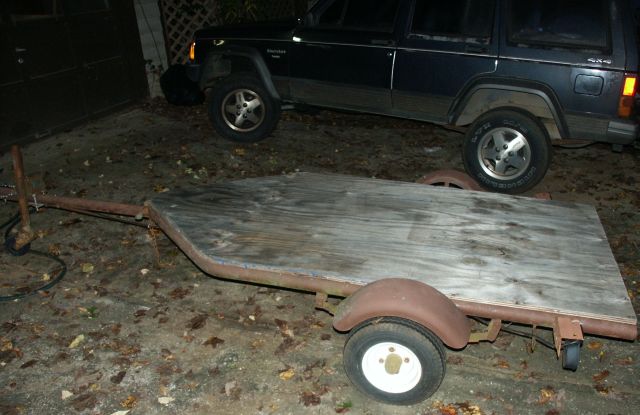

Picked up a small 4x8 boat trailer:

Had those magnetic towing lights that just kept falling off. So, I picked up some recessed LED lights

First step was making some C channel out of angle iron:

TIG welded them together. Then cut an oval hole for the Lamps:

Then welded the frames on

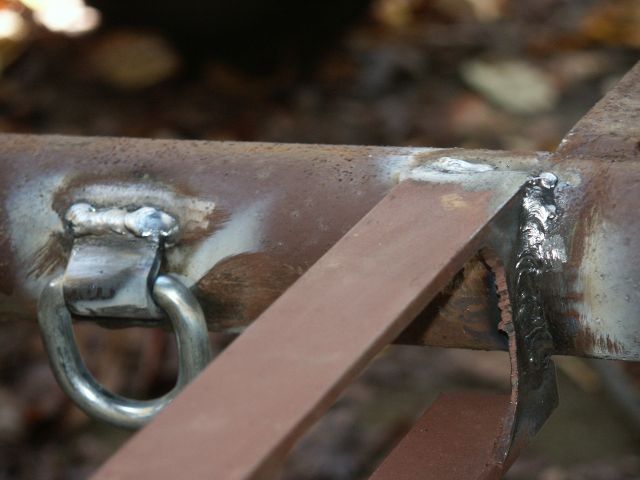

:The D-ring was welded on also. Both done using stick welding.

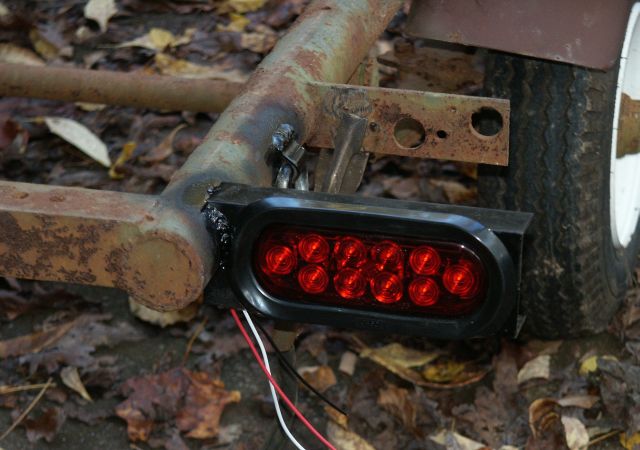

Here's a completed tail light:

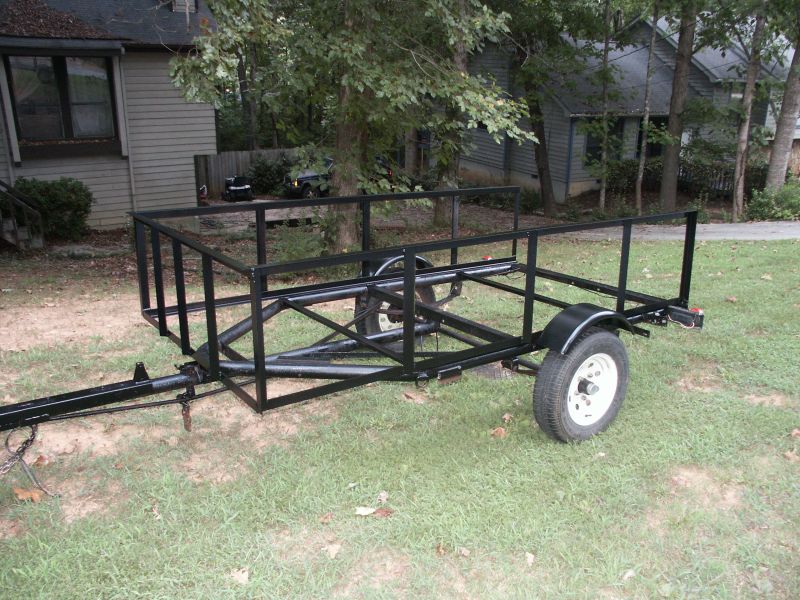

A bit of paint, bigger fenders welded on (also upgraded to 12" wheels.) Reflector brackets welded on. Tongue was shortened about 3 feet.

Worked well but want more ;)

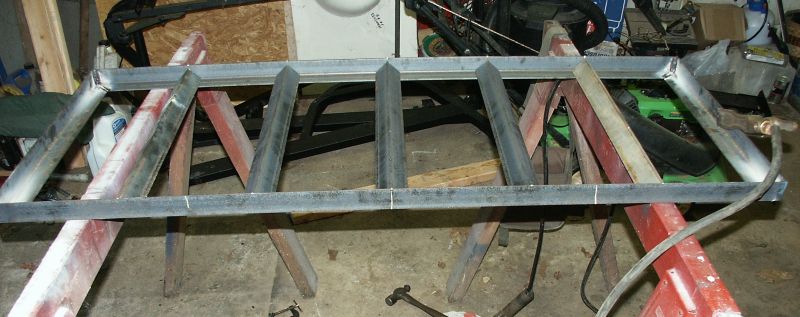

Started by making a rectangle frame:

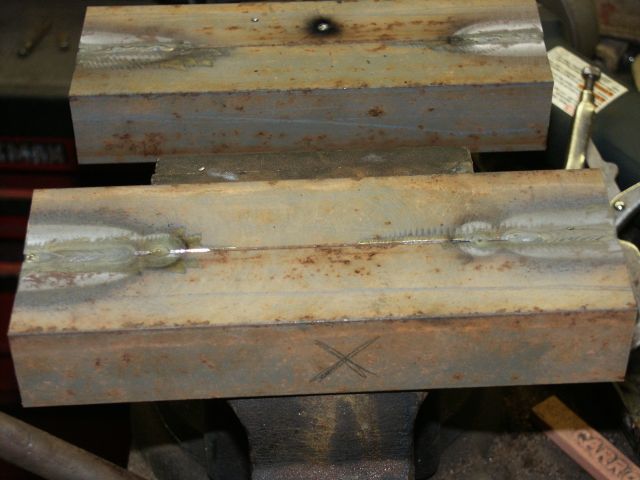

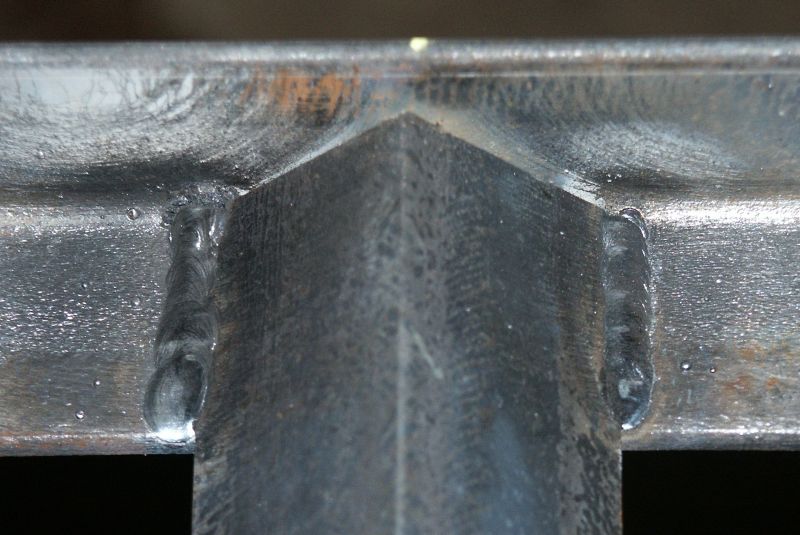

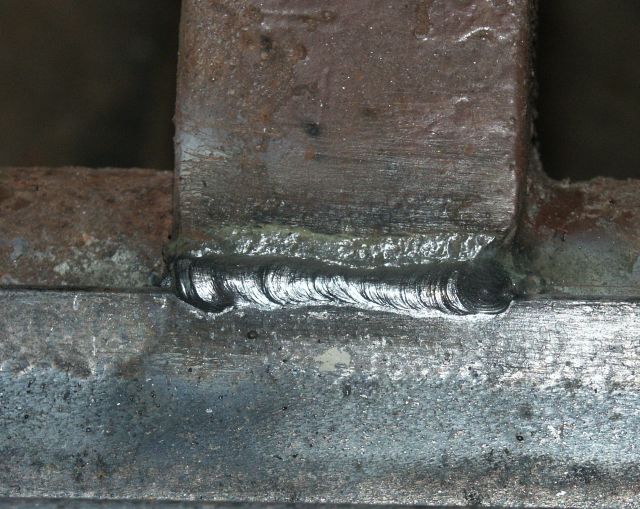

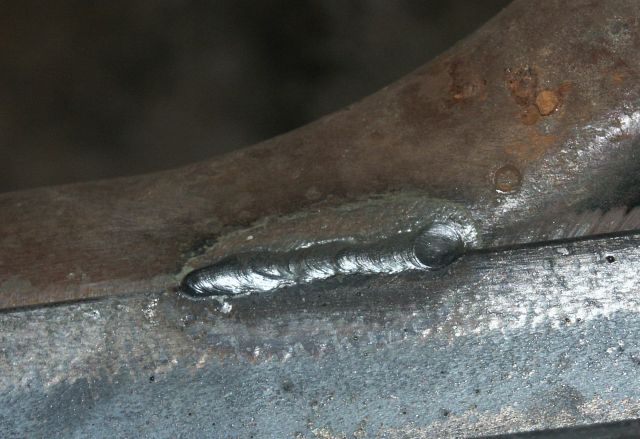

50 x 96 inside dimensions. All stick welded. Here's some sample welds:

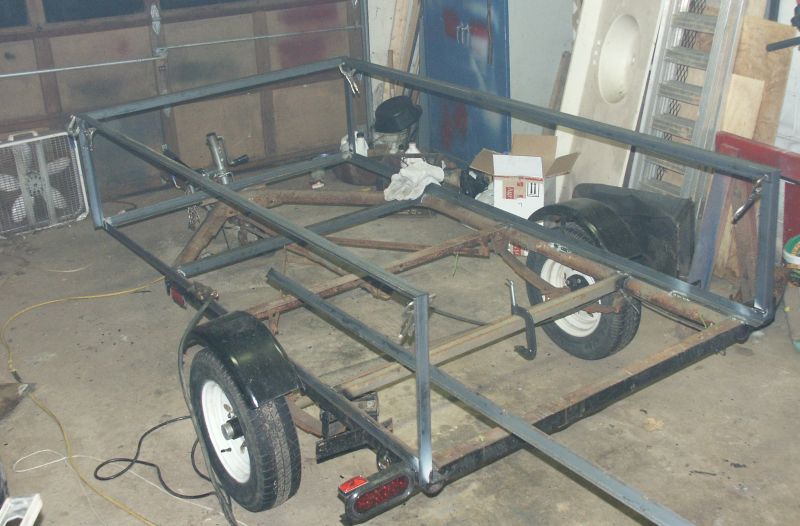

Started on the sides:

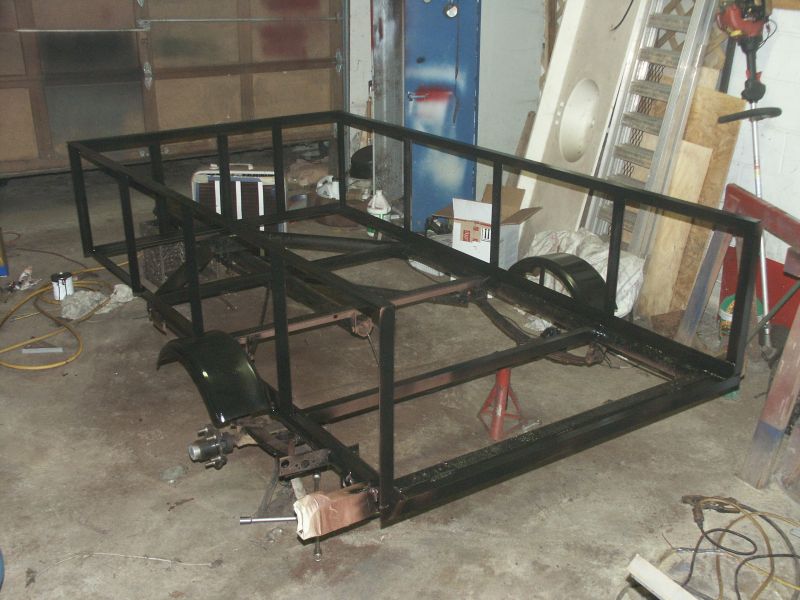

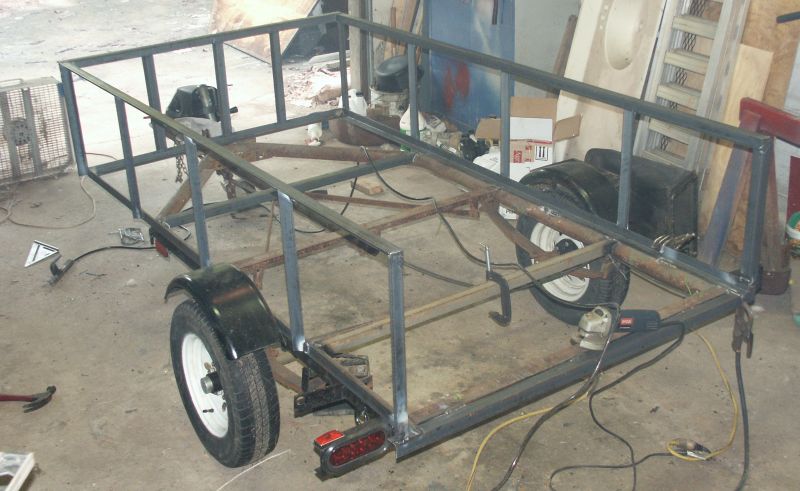

All welding is done ;)

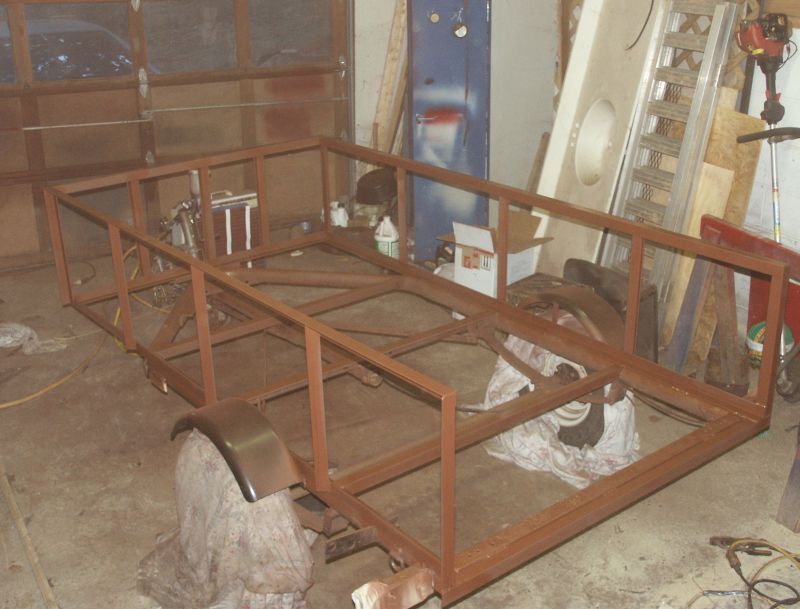

Now on to painting. Need to get some primer and the deck boards.

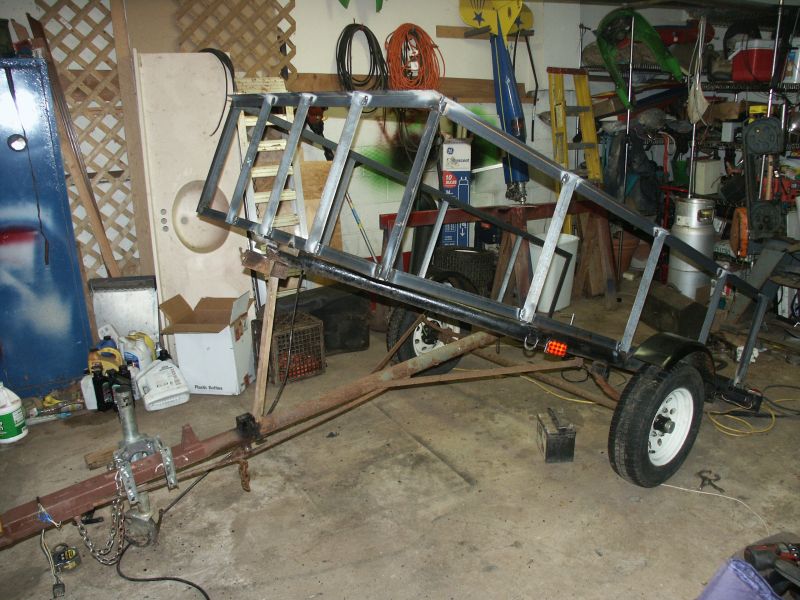

Oh, yes, it still tilts, but it is considerably heavier.:

Picked up 5/4 x 6 deck boards:

First coat of primer:

First coat of black:

Painting done, now just need to bake in the sun to get hard:

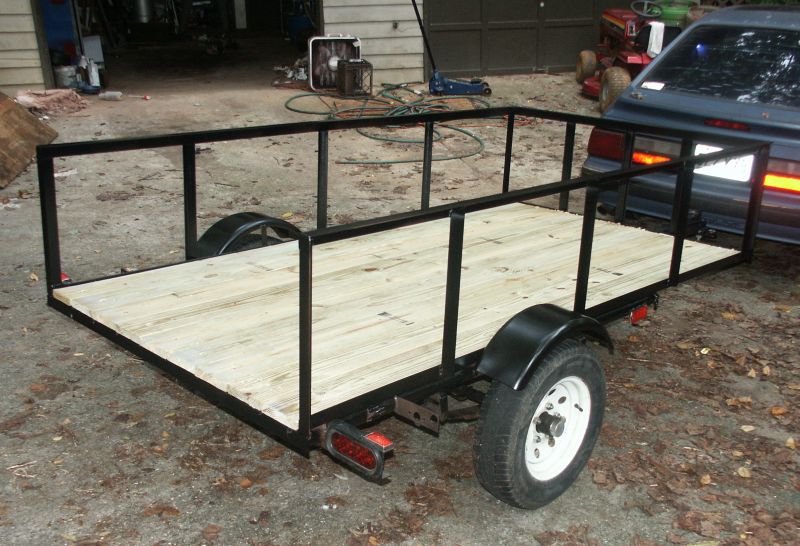

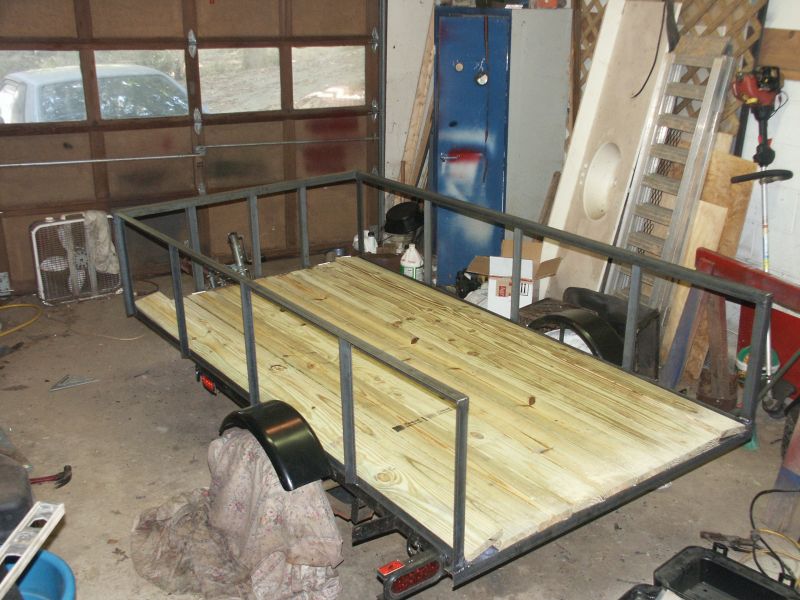

All done for now:

Starting a gate:

Some welds, Stick wekded with Lincoln Electric 6013, 3/32" rods.

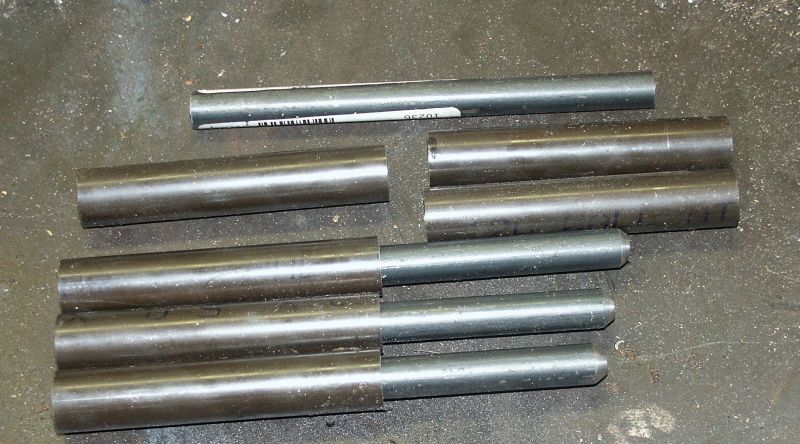

Started making hinges from 3/4" DOM tubing and 1/2" steel rods. Will allow gate to be removed and reinstalled as a ramp with right, left and center positions.

Forgot to take picts of completed gate. It works well.

On the sides, pins slide in to hold the gate closed. I put them on chains so with the gate down and the pins installed, the gate lays flat. That makes it just ove a 9' trailer.
