Adapter to use 1/4" HSS bits with a rake angle. Made from 13/16" 12L14 hex bar. Made using milling attachment on 12x36 lathe. I have also used the milling attachment to modify the Sherline cross slide on my 109 lathe. I cut 1/8" off most of the bottom to make it lower on the carriage. |
|

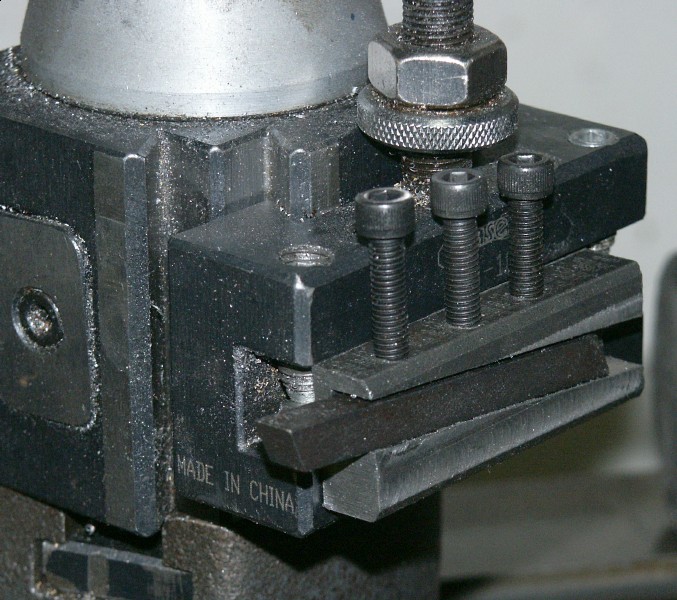

Here's the adapter i nstalled in a QC toolholder. |
|

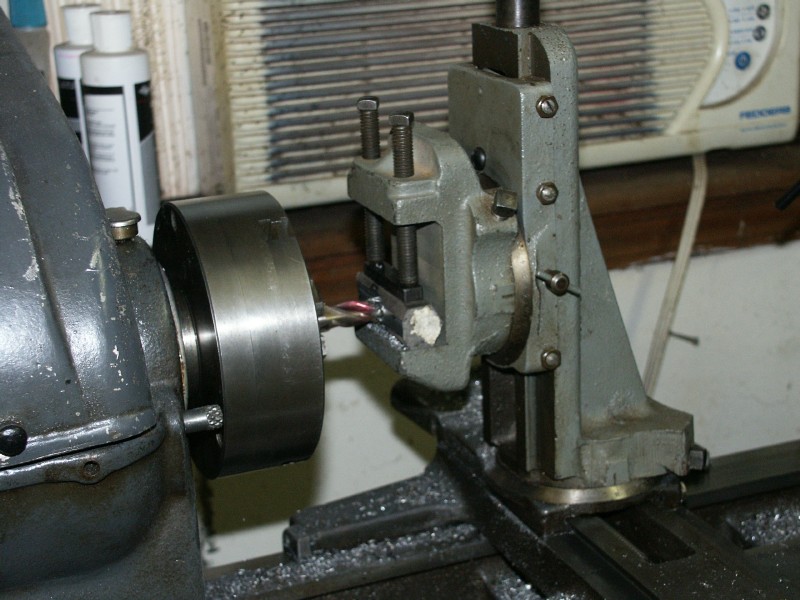

Mill attachment in use. Was the first test with the regular chuck. Switched over to the collet adapter for smoother cutting.. | |

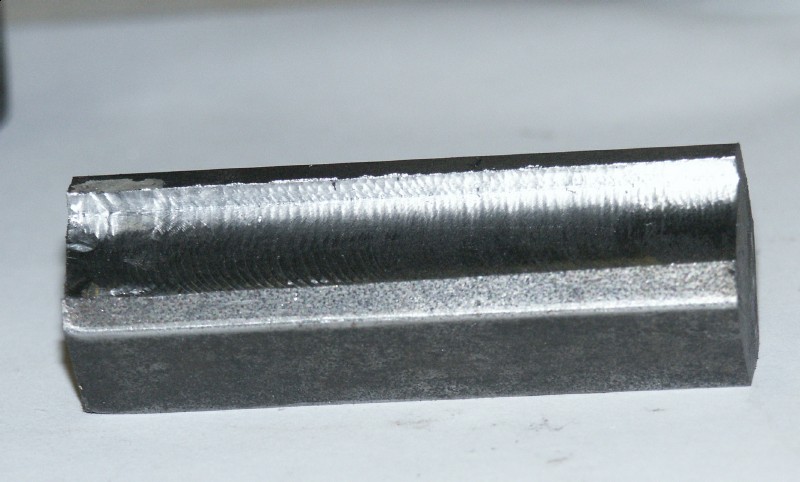

Here is the piece shown being cut above. A bit of chatter. When I switched to the colllete chuck, it worked better. | |

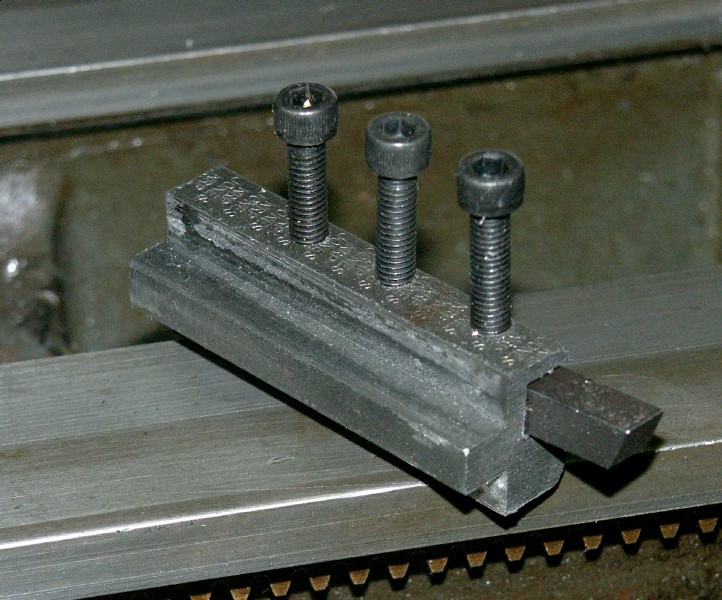

Here is a carriage stop made from 1.25" 6063 aluminum. Milled a slot about 1/2" deep and about 0.385 high (bed is 0.375). Lower area milled to clear rack. Screws are 10-32 x 1". The top had marks from the band saw so i milled it down slightly. The camera really exagerrated the grooves. It feels perfectly smooth but you can see the edge of each pass. All milling was done with a 0.25" 4-flute end mill mounted in the ER-40 chuck.. This was a scrap piece I reused, so you can see it is a bit hollow. Does not effect how it works. |
