Made a trailer/cart for the riding mower.

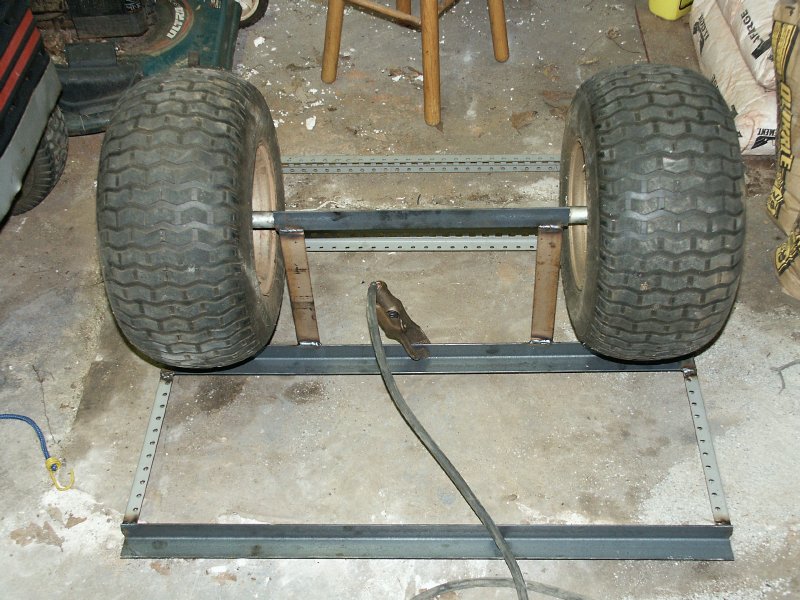

 Started with a frame from 1.5" angle iron and rails from an old set of shelves.

Wheels are from an old riding mower.

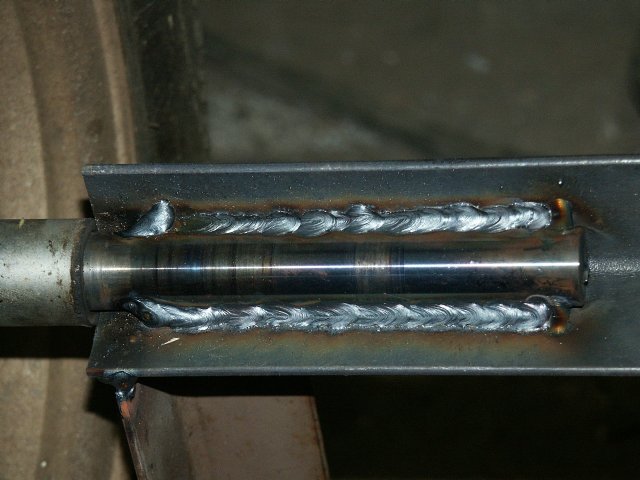

 Had a dead transaxle from riding mower. Cut off the shafts and welded them in.
 More sample welds. The Miller CP-250 is working well but still need to tweak the inductance.

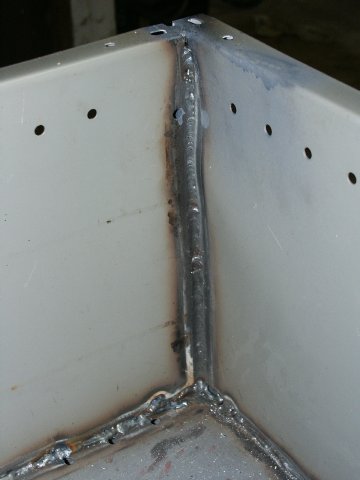

 Side and bottom are from some 20ga shelving. Completely seam welded the box.

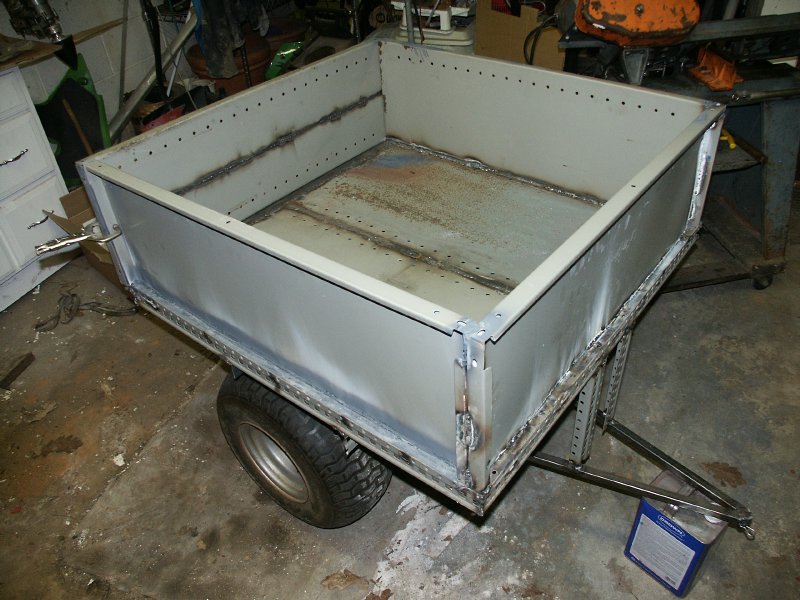

 Basically all done except for the latch on the tailgate. Tailgate has piano hinge welded on.

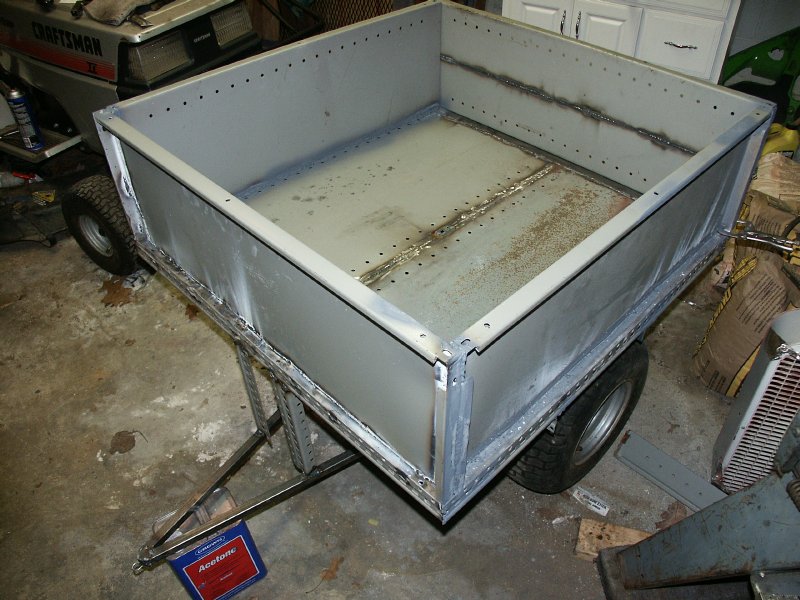

 Another picture. Needs sanding and paint.

I have used it many times. It is very strong; have hauled a full load of dirt with no problems.
